For storing glue application units of the edge-banding machines.
Application

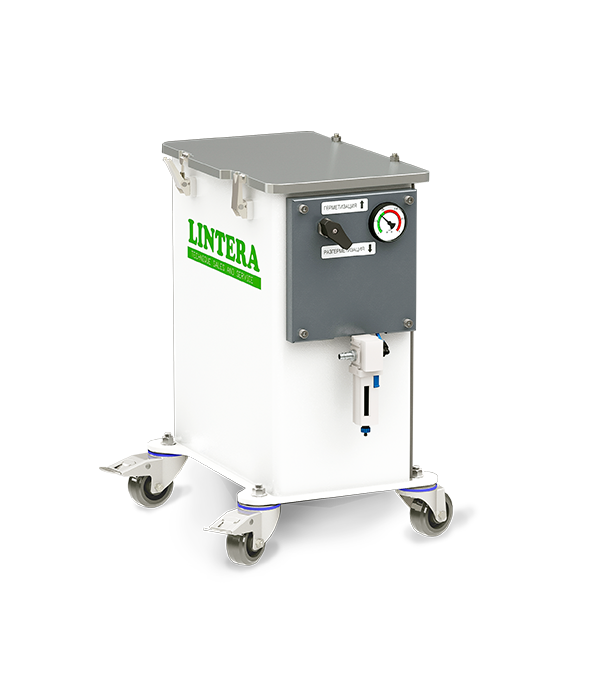

Vacuum container (model VK) is intended for storage of glue application units of the edge-banding machines when using polyurethane adhesives (PUR, PU) during technological breaks in the operation of equipment.
Operation principle
The glue application unit is stored under conditions of low atmospheric pressure. To create a vacuum inside the working chamber of the container, it shall be connected to the air supply of the consumer. After locking the lid and creating of the vacuum necessary for storage, the container can be disconnected from the air supply for further long-term or short-term separate storage.
Technical specifications
Parameter name | Value |
Pressure of air supply, bar | 5 – 8 |
Air consumption (at a pressure of air supply 6 bar), l/min | 120 (maxim. up to 150) |
Created vacuum, bar | -0,7 |
Vacuum time period up to -0,7 bar (at a pressure of air supply 6 bar), minute | up to 2 |
Recommended operating temperature, °C | 10 – 35 |
Length, mm | 530 |
Width, mm | 355 |
Height, mm | 635 |
Weight of container, kgг | 60 |
